KDI 1903 TCR Kohler engine Diesel
search
  • KDI 1903 TCR Kohler engine Diesel

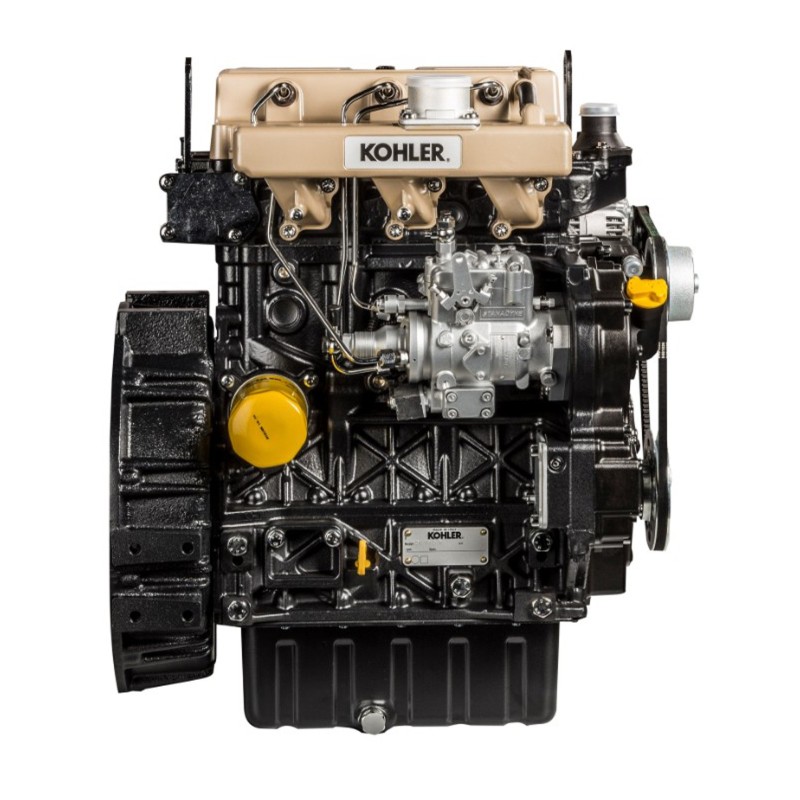

Diesel Engine Kohler KDI 1903 TCR

Reference: K-3N46D4

KDI 1903 TCR engine Diesel Kohler 3-cylinder water-cooled in its standard version. See agricultural, industrial, generator sets and manufacturers

  • HP (kW) - 56(42)
  • Four-stroke
  • In-line cylinders
  • Turbocharger with excess gas outlet valve.
  • Stage V
  • Compatible with KDI Kohler Spare Parts

3 Year Manufacturer's Warranty

Tu presupuesto en menos de 2 horas

  • Description Chevron Tab icon

    SEE MODEL SPECIFICATIONS IN THE "MODELS" TAB

    Engine type:

    With advanced features such as common rail, 4-valve cylinder head, turbocharger, EGR system with electronic cooling, oil control system and Diesel Oxygen Catalyst (DOC) KOHLER Diesel common rail engines reduce operating costs and maintenance. Discover the durable performance of KOHLER Diesel engines.

    Model
    Diesel KDI1903TCR
    J1940 Horsepower (Kilowatt) 1 56 (42)
    Displacement, cubic inches (cc) 113.5 (1861)
    Diameter, inches (mm) 3.5 (88)
    Stroke, inches (mm) 4 (102)
    Maximum torque, lb-ft (Newton/meter torque) 165.9 (225)
    Compression ratio
    Dry weight, pounds (kg) 512.6 (233)
    Oil capacity, quarts USA (L) 8.9 (8.5)
    Lubrication
    Dimensions, L x W x H, inches (cm) 23.5 x 20.5 x 28.18

    User-Friendly Maintenance.

    • No DPF service
    • One side service
    • 500 hour oil change intervals

    High Power Performance.

    • Turbocharger
    • High-pressure common rail (2000 bar)
    • 4 valves per cylinder
    • Up to 300 Nm of torque at 1500 rpm

    Increased Efficiency.

    • Advanced common rail direct injection system
    • Close-circuit crankcase breather

    Quiet, Smooth Operation.

    • Hydraulic valve lifters
    • Controlled combustion with multiple injections per cycle
    • Straight tooth gear reduced pitch
    • Liquid-cooled

    Reliability and Long Life Design.

    • Cast iron crankcase with vibration-absorbing bed plate

    Common applications:

    Orchard/Vineyard tractor - 4WD tractor - Water pump (irrigation) - Concrete sprayer - Dumper - Excavator - Compaction roller - Asphalt cutter - Skid Steer Loader - Wheel loader - Self-priming water pump - Air compressor - Generator - Welder - Engine sweeper - Aerial platform - Rope equipment - High pressure washer - Fire fighting pump - Forklift

  • Product Details Chevron Tab icon
    K-3N46D4

    Data sheet

    Height
    233 kg
    726 (mm)
    Width
    530 (mm)
    Rotation
    Counterclockwise
    Aspiration
    Turbocharged
    Combustion System
    Direct Injection
    Displacement (cc)
    1861
    Cycle
    4 strokes
    Cooling System
    Liquid
    Oil Sump Capacity
    8.5
    Cylinders
    3
    FARMING
    Engine optimised for conventional tractors, fruit trees and vineyard tractors.
    INDUSTRIAL | BUILDING
    Cement mixer, Dumper, Minidumper, Mini excavator, Motor compressor, Vibrating plate, Roller, Asphalt cutter
    Fuel
    Diesel
    Power
    42 kW (56 HP)
    Lenght
    598.3 (mm)
    Tank (L)
    8.5 l
