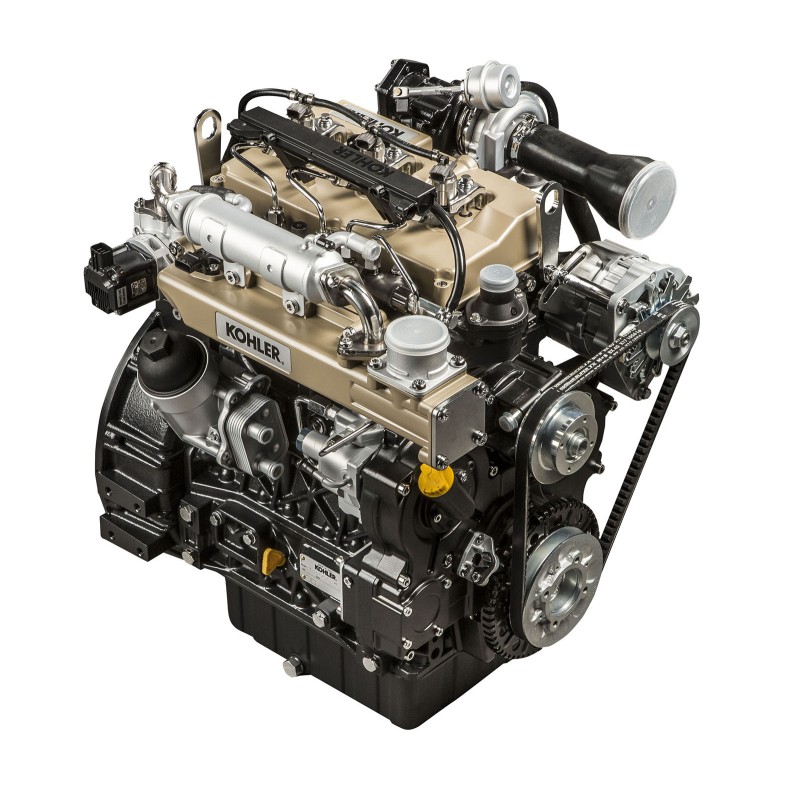

Diesel engine Kohler KDI 1903 TCR
Reference:
K-3N46D4
Engine Diesel Kohler KDI 1903 TCR
engine Kohler Diesel 3 Cylinder Water Cooling
Four-stroke, in-line cylinders, cast iron block, high-pressure common rail, turbocharger with excess gas outlet valve
-
Description
Type of engine:
With advanced features such as common rail, 4-valve cylinder head , turbocharger, electronically cooled EGR system, oil control system and diesel oxygenated catalytic converter (DOC). The common rail engines KOHLER KDI Diesel, reduce operating and maintenance costs. Discover the long-lasting performance of KDI Diesel engines KOHLER .
Model
Diesel KDI1903TCR
J1940 Power in Horsepower(Kilowatt) 1 56 (42) Displacement, cubic inches (cc) 113.5 (1861) Diameter, inches (mm) 3.5 (88) Stroke, inches (mm) 4 (102) Maximum Torque, Pound-Feet (Newton Torque/Meter) 165.9 (225) Compression Ratio Dry Weight, lbs (kg) 512.6 (233) Oil Capacity, US Quarts (L) 8.9 (8.5) Lubrication Dimensions, L x W x H, inches (cm) 23.5 x 20.5 x 28.18
Easy maintenance.- Service on the one hand
- 500-hour oil change intervals
High-power performance.- Turbocompressor
- High-pressure common rail (2,000 bar)
- 4 valves per cylinder
- Up to 300 Nm of torque at 1,500 rpm
Quiet, undisturbed operation.
-
Hydraulic valve lifts
-
Controlled combustion with multiple injections per cycle
-
Reduced pitch of spur-toothed gears
-
Liquid-cooled
Reliable and long-life design.
-
Cast iron crankcase with seat base for vibration absorption
-
Product Details
K-3N46D4Data sheet
- GENERATOR OF ELECTRICITY | WELDING EQUIPMENT
- Generator, Refrigerating groups, Motor welder
- Power
- 56
